America Electronic Components, Inc. (“Toshiba”) has
launched “TB67H450FNG,” the latest addition to its line-up of brushed DC
motor driver ICs. The new product with a maximum rating of 50V/3.5A[1]
drives motors with a wide range of operating voltage. It also offers a
small HSOP8 surface mount package with a popular pin-assignment that
enhances the product sourcing possibility. Mass production starts today.
This press release features multimedia. View the full release here:
https://www.businesswire.com/news/home/20190531005348/en/

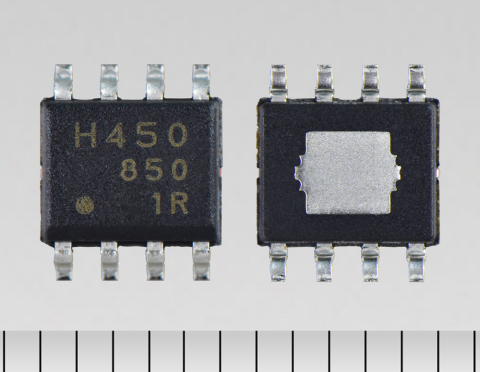

TB67H450FNG Brushed DC Motor Driver IC (Photo: Business Wire)
The new IC can drive brushed motors with a power supply ranging from
4.5V to 44V. It supports a wide range of applications that includes USB
powered, battery powered, and industrial 12-36V devices. TB67H450FNG
also has 3.5A current driving capability that can be used in
applications such as robot vacuum cleaners, refrigerators and other home
appliances actuators, office equipment, ATM machines, and many others.
To meet demand for lower power consumption, Toshiba has also optimized
the TB67H450FNG standby current consumption by newly developed power
supply circuit, which allows the stop mode moving to the standby mode
automatically and turns off VCC regulator for the internal circuit
operation. That helps OA equipment and home appliances to cut energy
consumption and improves the battery life of battery powered devices.
Housed in a small surface-mount type HSOP8 pin package, the IC achieves
space saving and yet good heat dissipation through the package thermal
pad design.
Key Features
-
Wide range of operating voltages: from 4.5V to 44V for large-current
drive devices - Low standby current consumption: 1 μA (max) @VM=24V, Ta=25°C
-
Small 8-pin surface mount package HSOP8 with a popular pin assignment
and with bottom side E-pad to enhance thermal dissipation.
Applications
Industrial equipment, including OA equipment and banking terminals; home
appliances, including robot vacuum cleaners; battery powered devices
(electronic locks and small household robots); and devices using 5V USB
power supplies
Main Specifications
| Part number | TB67H450FNG | |||
| Supply voltage (operating range) | 4.5V to 44V | |||
|
Output voltage/current （Absolute maximum rating） |
50V/3.5A | |||
| Number of H-bridge channels | 1ch | |||
| Motor to apply | DC Brushed motor | |||
| Output on-resistance (upper + lower) | 0.6Ω (typ.)@VM=24V, Ta=25℃ | |||
| Safety function | Over current detection, thermal shut down, and under voltage lockout | |||
| Package |
HSOP8
（Size: 4.9mm×6.0mm） |
|||
| Other features |
Current consumption in standby mode: 1 μA or less
Constant-current control (constant-current PWM control) Support forward/reverse/stop control |
|||
|
Note: |
|
|
| [1] |
Actual driven motor current depends on the use environment and such factors as ambient temperature and power supply voltage. |
For more information about the new product, please visit: https://toshiba.semicon-storage.com/us/product/linear/motordriver/detail.TB67H450FNG.html
